PVC COATED HEXAGONAL GABIONS

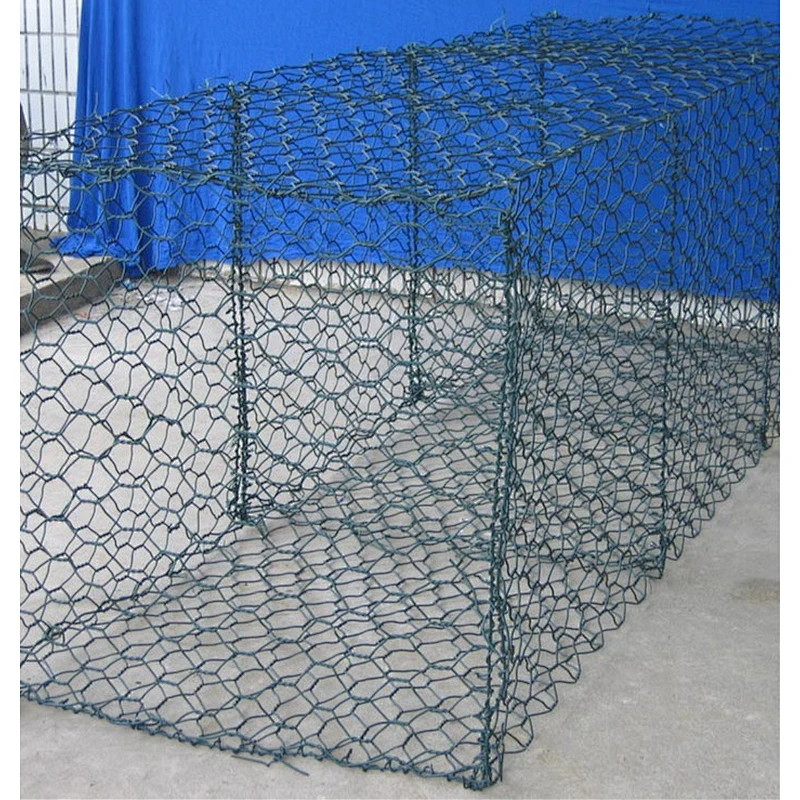

Gabions are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings. For hexagonal wire netting with no pvc coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.
1.Material:low carbon iron wire , galvanized iron wire , hot dip galvanized iron wire , galvanized steel wire , PVC coated wire, galfan steel wire, stainless steel wire
2.Wire daimeter:2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm
3.Aperture:6x8cm,8x10cm,10x12cm,12X15cm etc.
4.Slevege wire:3.4mm,3.7mm,4.0mm,5mm

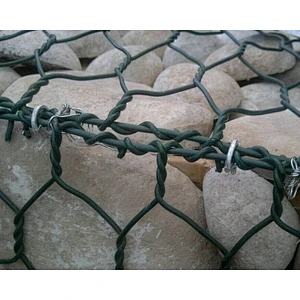

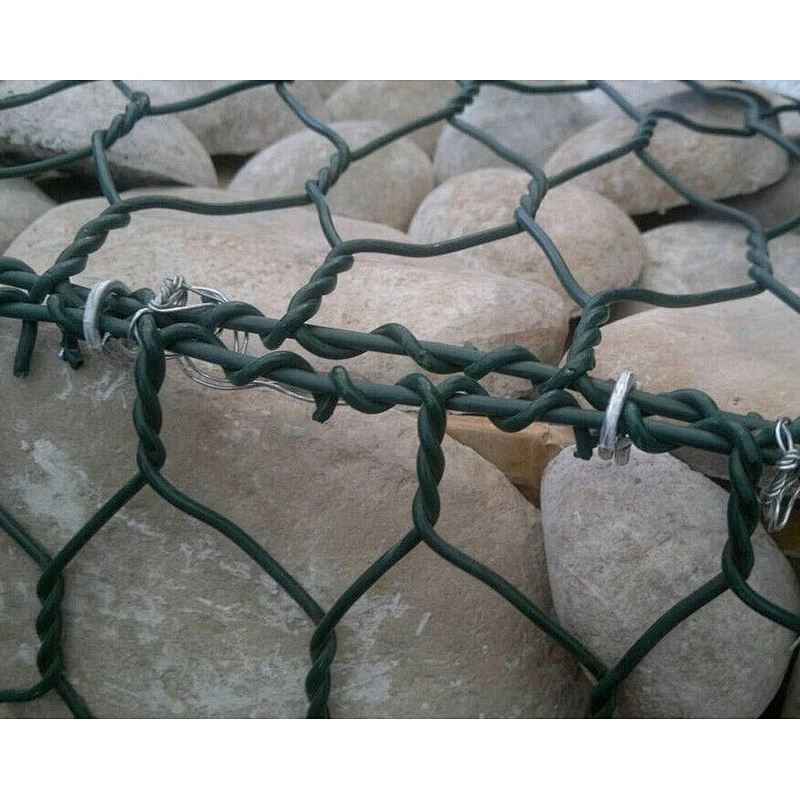

5.Lacing wire:2.2mm,2.5mm,2.7mm
6.Size:1x1x1,2x1x0.5,2x1x1,3x1x1,4x1x1
7.Application:

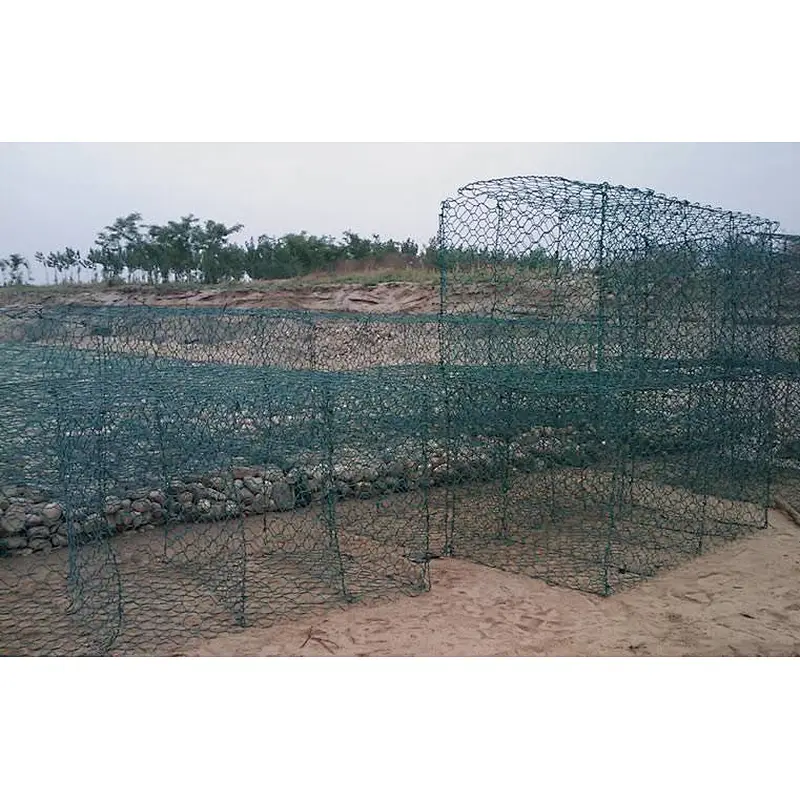

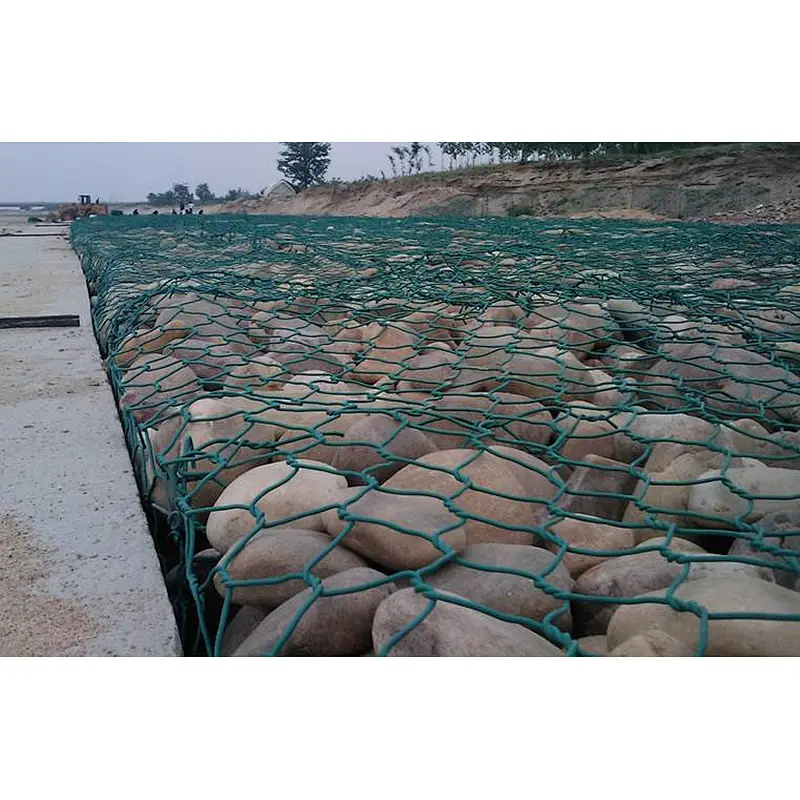

>Controlling and leading the river and flood.
> Flood discharge and lead flow.
>Rock fall defending.
>Preventing the water and soil lost.
>Protecting the bridge.
> Reinforce fabric.

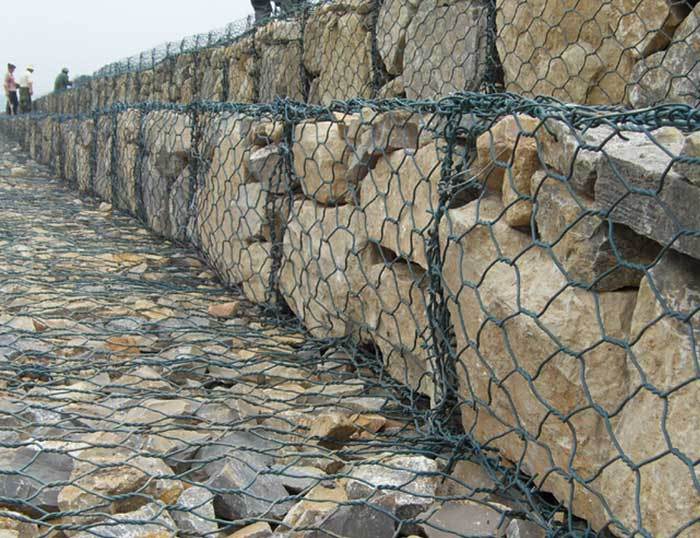

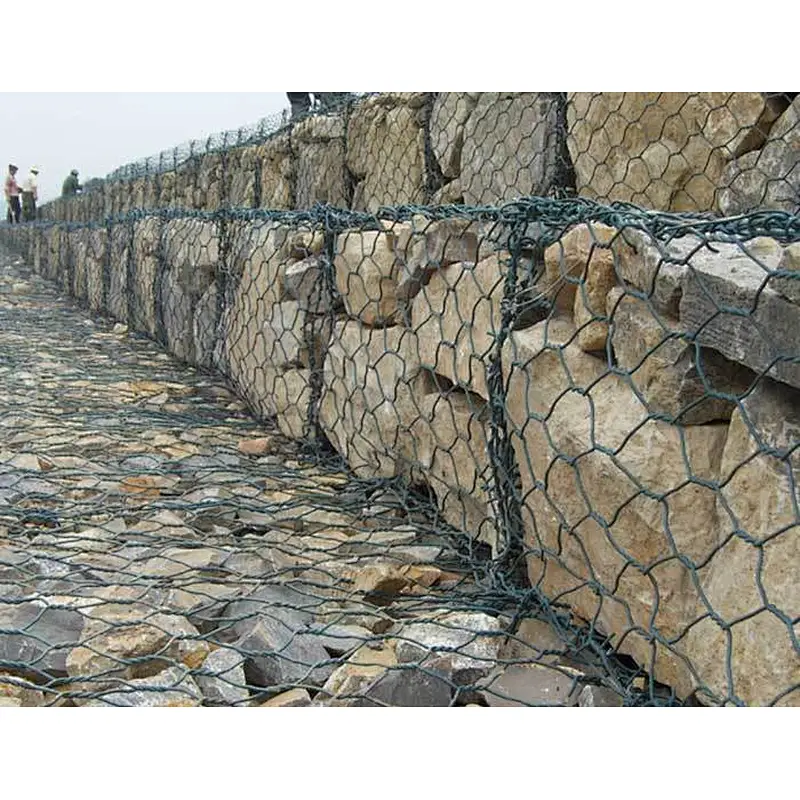

>Seashore recovery project.
Strengthening structure of soil;
| Opening (mm) | Wire Diameter (Metal Wire) (mm) | Wire Diameter (PVC Coated)/ Inner/Outside (mm) | Strands |
| 60X80 | φ2.0-2.8 | φ2.0/3.0-2.5/3.5 | 3 |
| 80X100 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 3 |
| 80X120 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 | 3 |
| 100X120 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 3 |
| 100X150 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 | 3 |
| 120X150 | φ2.0-4.0 | φ2.0/3.0-3.0/4.0 | 3 |
mesh Opening(mm) | Wire diameter (mm) | gabion Size |
60x80 | 2.0-2.8 | 1x1x0.3 1x1x0.5 2x1x0.3 2x1x0.5 2x1x1 4x2x1 6x2x0.3 6x2x1 As your request |
80x100 | 2.0-3.2 | |
80x120 | 2.0-3.2 | |
100x120 | 2.0-3.4 | |
100x150 | 2.0-3.4 | |
120x150 | 2.0x4.0 |
COMPANY INFORMATION AND CERTIFICATE
Hebei Anjia Wire Net Weaving Co. LTD was founded in 1991, with a professional elite team, specialized in development and production. We have our own factory with area of 72,000 square meters, located in Anpin which is China"hometown of wire mesh", and factory area of 70,000 square meters in Guangzhou, we have strong production capacity and standard management, National Product Quality Inspection Register Certificate and Euro CE & RoHS quality certification, SGS certificate etc. All our products are based on ISO9001:2008 and ISO14001 standard.
